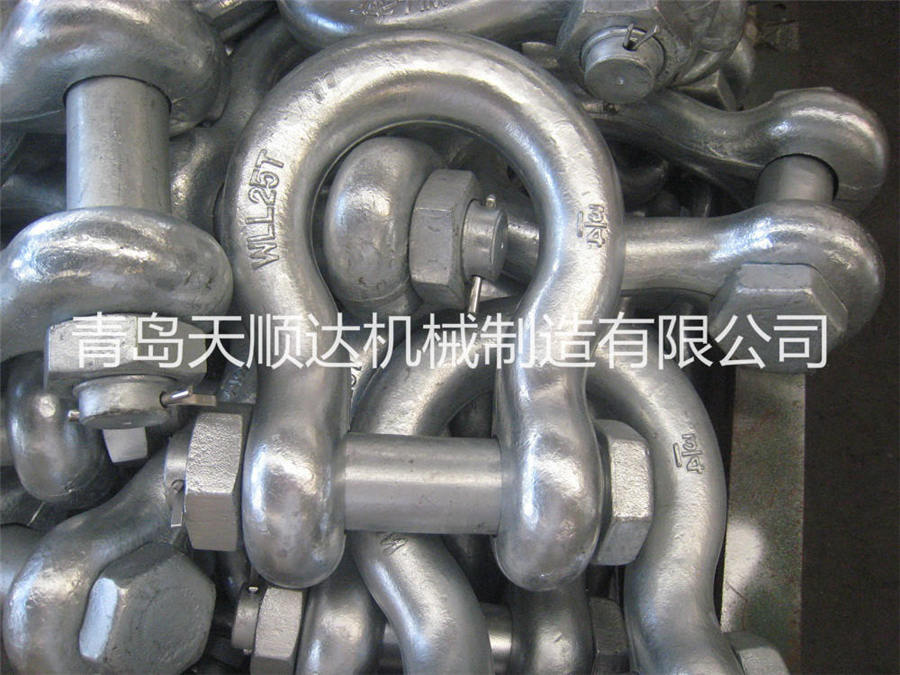

| US Type Shackle--G2130 G2150 |
| Material: 45# 40Cr |
| Surface: HDG Electro-Galvanized |
| Size Inch | WLL T | Dimensions mm | Drawing | ||||||
| A | B | C | D | E | F | G | |||
| 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 31 |  |
| 7/16 | 1-1/2 | 19 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 36 | |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 41 | |
| 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 51 | |
| 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 60 | |
| 7/8 | 6-1/2 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 71 | |
| 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 81 | |
| 1-1/8 | 9-1/2 | 46 | 31.8 | 108 | 28.7 | 74 | 68.5 | 91 | |
| 1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76 | 100 | |
| 1-3/8 | 13-1/2 | 57 | 38.1 | 133 | 35.1 | 92 | 84 | 111 | |
| 1-1/2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92 | 124 | |
| 1-3/4 | 25 | 73 | 51 | 178 | 44.5 | 127 | 106 | 146 | |
| 2 | 35 | 82.5 | 57 | 197 | 51 | 146 | 122 | 171 | |
| 2-1/2 | 55 | 104 | 70 | 267 | 66.5 | 184 | 145 | 203 | |
| 3 | 85 | 127 | 82.5 | 330 | 76 | 200 | 165 | 216 | |
| 3-1/2 | 120 | 133 | 95.5 | 372 | 92 | 229 | 203 | 262 | |
| 4 | 150 | 140 | 108 | 368 | 104 | 254 | 229 | 260 | |
