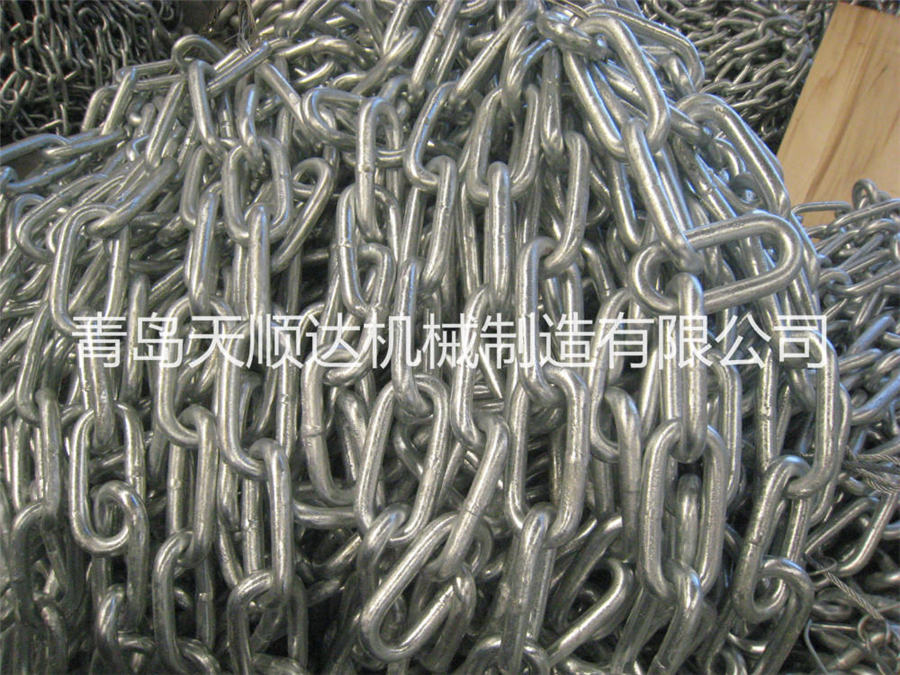

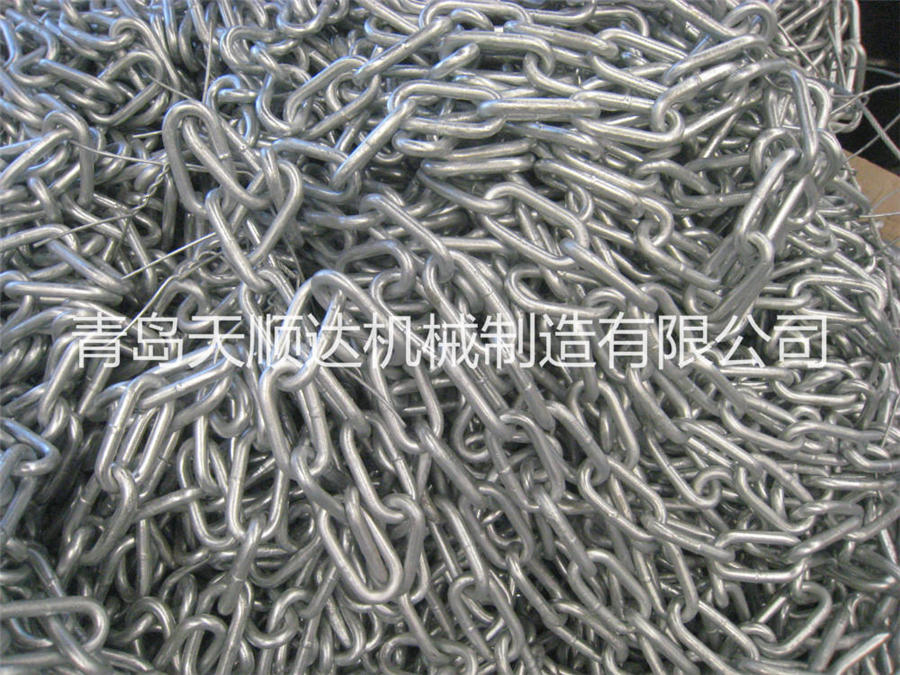

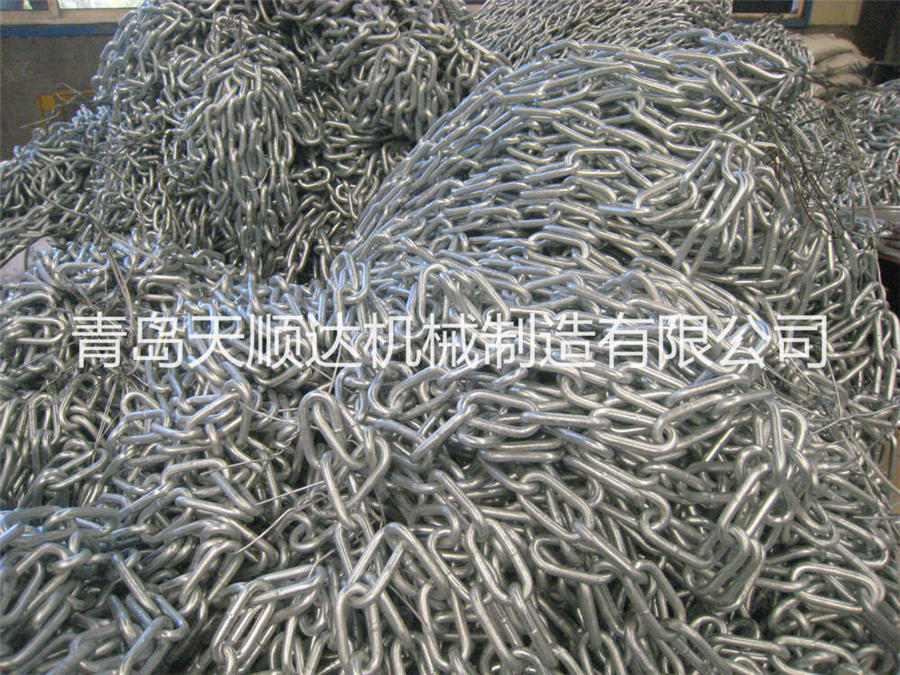

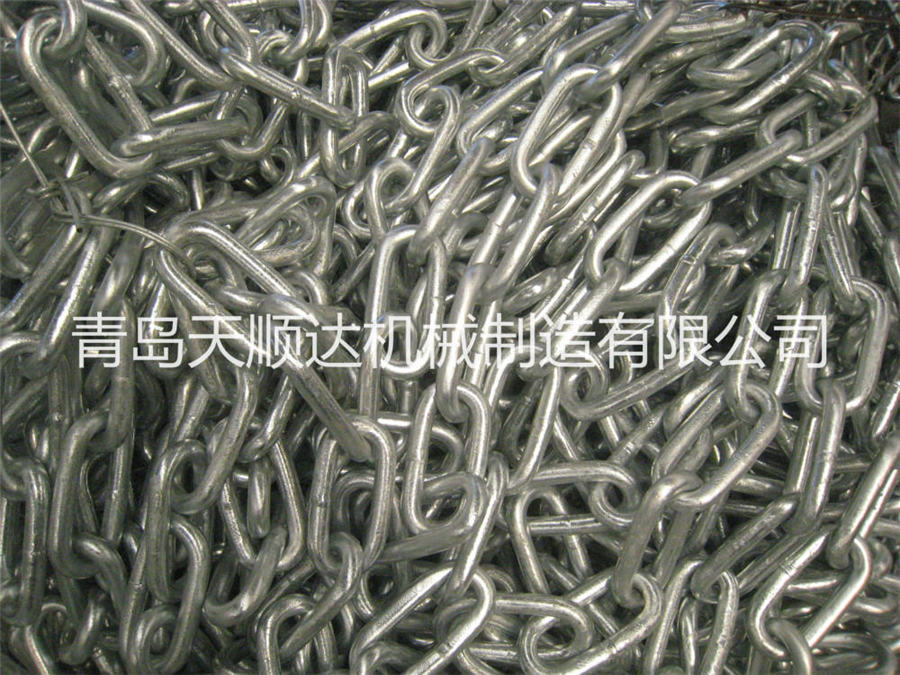

British Standard Chain

Material: Q235 CM490 20Mn2

Surface treatment: primary color plating

Specification		Short chain		Central chain		Long chain		Breaking load T	Specification icon
Chain diameter/D mm		Inner length/L mm	Outer width/W mm	Inner length/L mm	Outer width/W mm	Inner length/L mm	Outer width/W mm
inch	mm	Inner length/L mm	Outer width/W mm	Inner length/L mm	Outer width/W mm	Inner length/L mm	Outer width/W mm
1/8	3.2	16	12	20	12	23	12	0.40
5/32	4	18.5	14.5	23	15	27	15	0.60
3/16	4.7	19	17	25	18	31	17	0.80
7/32	5.5	20	19	26	19	32	19	1.10
1/4	6.35	22	21	26	23	33	21	1.50
5/16	7.94	26	26	32	29	48	31	2.40
3/8	9.5	28	32	35	35	60	37	3.40
7/16	11.1	33	36	38	38	71	41	4.60
1/2	12.7	39	43	50	45.5	85	48.5	6.00
5/8	15.8	45	53	60	56.7	114	61.5	9.40
3/4	19	55	63	76	69	125	75	13.60
7/8	22.2	64	74	90	80	140	88	18.50
1	25.4	73	84	105	95	155	100	24.30
